Using Merkle Trees to Efficiently Detect Data Changes

Streamline Data Verification and Synchronization with the Power of Merkle Trees

This article introduces the Merkle Tree data structure, its principles, and applications. It explains how Merkle Trees leverage hash functions to efficiently detect changes in data sets, including file synchronization, blockchain transaction verification, and P2P file sharing. By constructing a tree structure with root, intermediate, and leaf nodes, Merkle Trees optimize large-scale data verification with reduced computational overhead.

Hash Functions: The Foundation of Merkle Trees

A hash function generates a fixed-length output (hash value) for any input. Even a minor change in the input completely alters the hash value, making it a key tool for detecting data tampering. However, hashing becomes inefficient when applied to numerous files or data blocks individually.

This is where Merkle Trees shine. By organizing hash values into a binary tree structure, they enable efficient and hierarchical verification of large data sets.

What is a Merkle Tree?

A Merkle Tree, or hash tree, is a binary tree structure that comprises:

• Leaf Nodes: Represent hash values of individual data blocks.

• Intermediate Nodes: Store combined hashes of their child nodes.

• Root Node: Represents the topmost hash, summarizing the entire data set.

Merkle Trees are constructed bottom-up by pairing hash values, computing parent hashes, and continuing until a single root hash is derived.

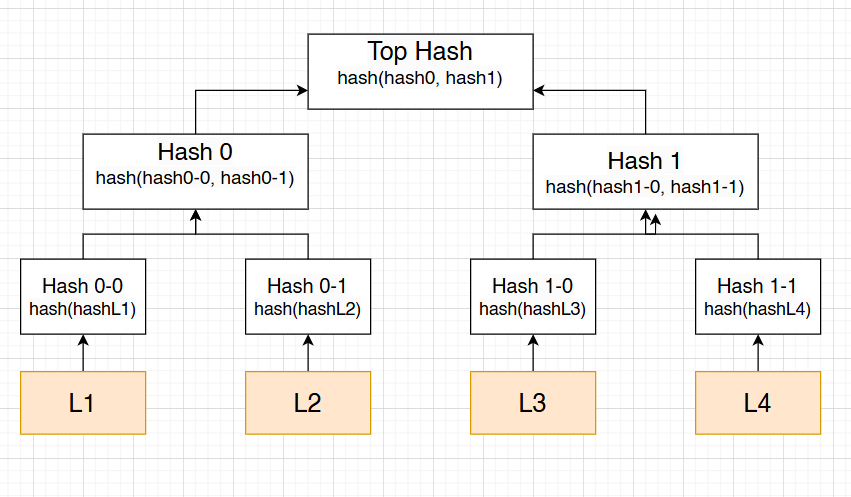

Example Construction:

For data blocks L1, L2, L3, and L4:

            ROOT
           /    \
      Hash1      Hash2
     /   \       /   \
   L1    L2    L3    L4

Applications of Merkle Trees

1. Data Synchronization

Consider a cloud synchronization system:
Local directory:

/sync_folder/
├── file1.txt
├── file2.txt
├── file3.txt
└── file4.txt

Using Merkle Trees, only modified files (e.g., file2.txt) are detected and synchronized by comparing tree hashes, reducing comparison overhead from O(n) to O(log n).

---

2. Blockchain

In blockchain networks, Merkle Trees enable efficient transaction verification. Light nodes validate specific transactions by checking a subset of hashes (Merkle proof) rather than downloading the entire block.

---

3. P2P Networks

In file-sharing systems like BitTorrent, Merkle Trees validate downloaded file blocks against a root hash to ensure integrity and prevent tampering.

---

Code Implementation

Here’s a JavaScript implementation of Merkle Trees for detecting file differences:

const crypto = require('crypto');

class MerkleNode {
    constructor(hash, filename = '') {
        this.hash = hash;
        this.filename = filename;
        this.left = null;
        this.right = null;
    }
}

class MerkleTree {
    constructor() {
        this.root = null;
    }

    static hash(data) {
        return crypto.createHash('sha256').update(data).digest('hex');
    }

    buildTree(files) {
        const leaves = Object.entries(files).map(([filename, content]) =>
            new MerkleNode(MerkleTree.hash(content), filename)
        );
        this.root = this.buildFromNodes(leaves);
        return this.root;
    }

    buildFromNodes(nodes) {
        if (nodes.length === 1) return nodes[0];

        const parents = [];
        for (let i = 0; i < nodes.length; i += 2) {
            const left = nodes[i];
            const right = nodes[i + 1] || null;
            const combinedHash = right ?
                MerkleTree.hash(left.hash + right.hash) :
                left.hash;
            const parent = new MerkleNode(combinedHash);
            parent.left = left;
            parent.right = right;
            parents.push(parent);
        }
        return this.buildFromNodes(parents);
    }

    findDifferences(otherTree) {
        const differences = [];
        const compare = (node1, node2) => {
            if (!node1 || !node2 || node1.hash === node2.hash) return;
            if (node1.filename) differences.push(node1.filename);
            compare(node1.left, node2.left);
            compare(node1.right, node2.right);
        };
        compare(this.root, otherTree.root);
        return differences;
    }
}

// Example Usage
const originalFiles = {
    'file1.txt': 'Hello',
    'file2.txt': 'World',
    'file3.txt': 'Merkle',
    'file4.txt': 'Tree'
};

const modifiedFiles = {
    'file1.txt': 'Hello',
    'file2.txt': 'JavaScript',
    'file3.txt': 'Merkle',
    'file4.txt': 'Tree'
};

const tree1 = new MerkleTree();
tree1.buildTree(originalFiles);

const tree2 = new MerkleTree();
tree2.buildTree(modifiedFiles);

console.log('Modified Files:', tree2.findDifferences(tree1));

Conclusion

Merkle Trees exemplify the power of divide-and-conquer strategies, optimizing data verification in scenarios like cloud synchronization, blockchain validation, and P2P file sharing. Their efficiency in handling large-scale data makes them invaluable in today’s digital ecosystem.
